13" - 65" | 33 - 165 cm
Full Motion - Extension, Swivel & Tilt
TV Wall Mount
75x75 to 400x400mm
Lifetime Warranty (scroll down for document).
Includes a patented mechanism to fit various screen types and screens with special back structure.
For screens weighing up to 88lbs/ 40kg.
Minimum distance from the wall: 2.7" / 7 cm.
Maximum distance from the wall: 17.8" / 45 cm.

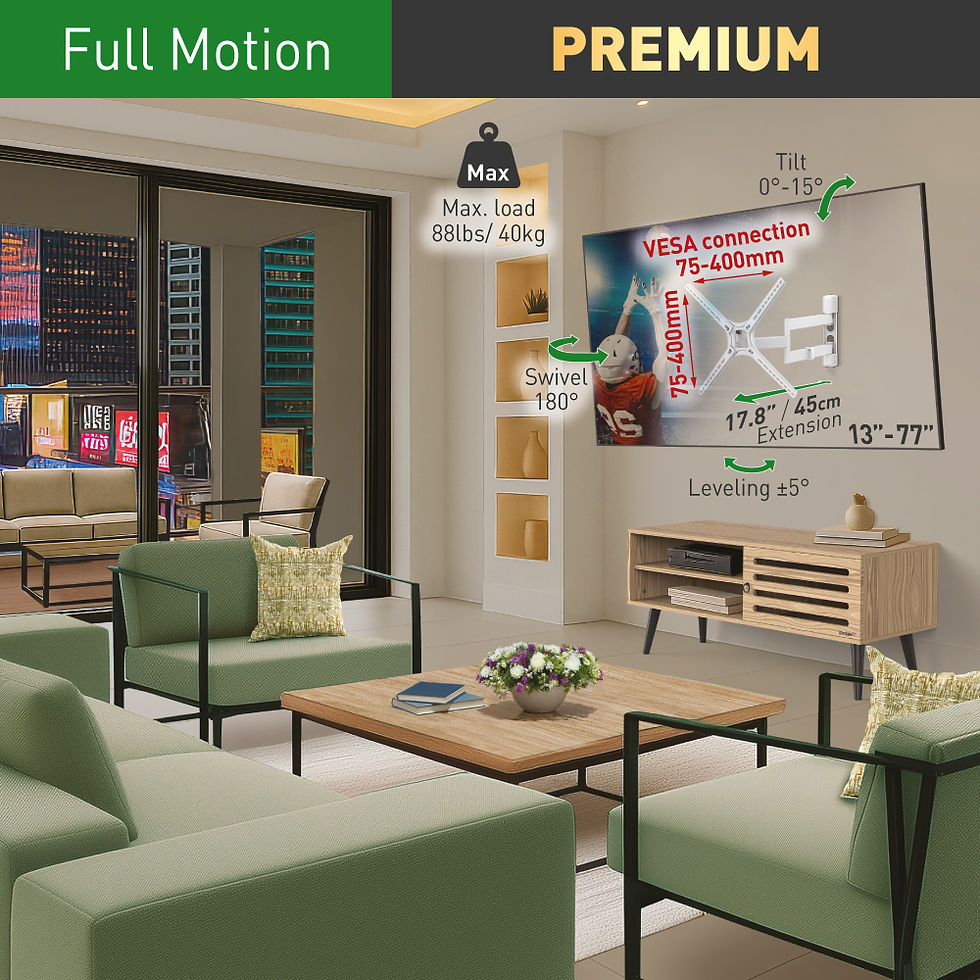

The mount has 3 pivots which: rotate near the wall (double arm) 180°, fold 360°, swivel near the screen connection plate 180° in addition to a tool-free tilt from -5° till 15° and a +/-5° leveling after the installation.
Allows swinging in and out of niches and various viewing positions.
Fits TVs with VESA standard (Bracket Mounting Holes Patterns) 75x75, 100x100, 100x200, 200x100, 200x200, 200x300, 300x300, 300x400, 400x200, 400x300, 400x400 mm and non VESA up to 400x400 mm.
Safety tested with a load of 353lbs/ 160kg.
Also compatible for larger screen sizes, where their specifications comply with the mount.
Please check the list of included screen-connection screws in the assembly instructions. If your screen requires different screen-connection screws, please purchase them in your local hardware store.
Product installation - please make sure to follow the assembly instructions precisely. If you have any questions contact our support team.
Previous and parallel versions: 3400W, E340, AL340W.

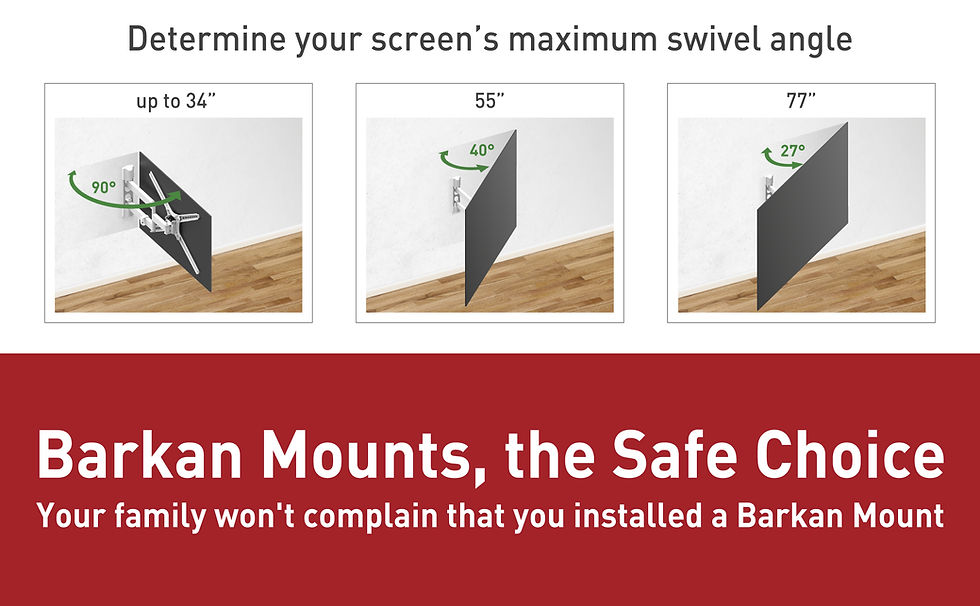

Max TV angle relative to wall:
1. Connect the TV plate to the back of the TV. 2. Install the bracket on the wall. 3. Snap the TV onto the bracket.
Inner structure prevents disengagement of the screen.
A built-in mechanism to adjust the screen.
Holds the cables together.
Patented mechanism to fit various screen types.
This product features our unique patent.
All Barkan's TV mounts has a lifetime warranty.
100% of Barkan's products passed quality control tests. The product was tested with 4 times its declared weight
